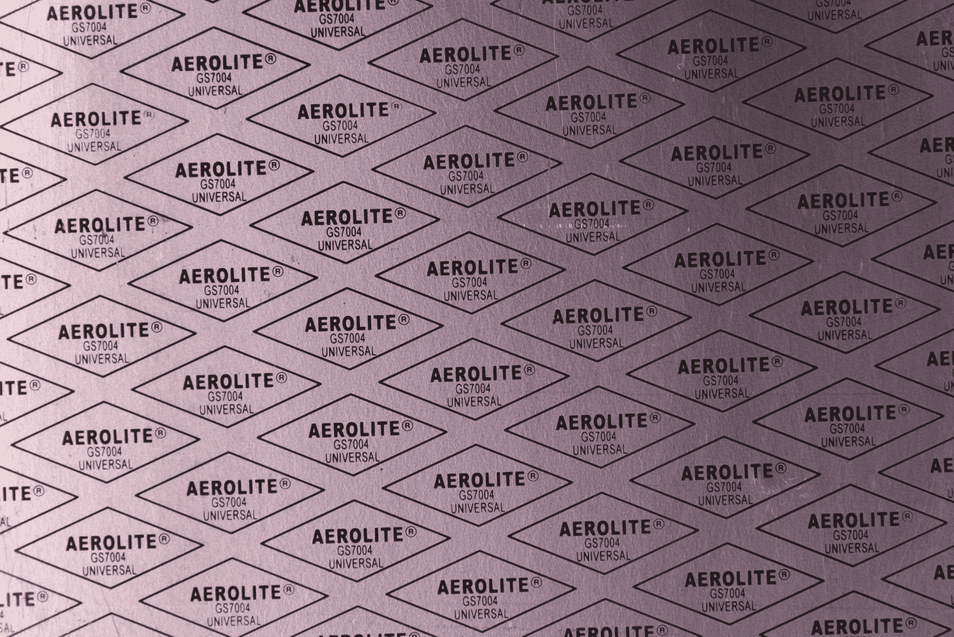

AEROlite® GS7004 Graphite Laminate Sheet | 0.05mm SS316L Insert

TBJ-UTEX is a specialist manufacturer of Aerolite® GS7004 Reinforced Graphite Sheets in Johor, certified Fire Safe according to API 6FB. Mechanically bonded to a 0.05mm thick smooth stainless steel insert, GS7004 offers exceptional adaptability for fragile flanges (glass) and liquid level gauges, providing high compressibility and leak-tight sealing for irregular industrial surfaces worldwide.

Property	Test Method	Specified Value
Metallic Reinforcement	AISI 316L	0.05 mm Smooth Metal
Certification	API 6FB	Fire Safe Certified
Purity of Graphite	DIN 51903	≥ 99%
Compressibility	ASTM F36 J	35 - 50 %
Recovery	ASTM F36 J	10 - 15 %
Stress Relaxation	DIN 52913	≥ 46 MPa
Chloride Content	ASTM F1277	≤ 40 ppm
Sulfur Content	ASTM C 816	≤ 1000 ppm

Why Choose AEROlite® GS7004?

AEROlite® GS7004 is specifically engineered for applications where maximum adaptability is required. The combination of ultra-pure exfoliated graphite and a thin 0.05mm stainless steel insert allows for exceptional compressibility, enabling a perfect seal even on irregular flanges or fragile materials like glass. Its low gas permeability and indefinite storage life make it the ideal universal sealing solution for liquid level gauges and valve systems handling aggressive media under intense thermal stress.

Precision Manufacturing for Local & Global Markets

We produce GS7004 to the highest purity standards at our Johor Bahru facility, ensuring reliable performance in critical level gauge and fragile flange applications. Our focus on technical precision and material traceability supports the immediate maintenance needs of refineries in Pasir Gudang and Pengerang. With a global logistics framework, we provide international clients with certified Fire Safe graphite solutions for complex industrial environments.
