AEROlite® Flange Insulation
Gasket Kits
TBJ supplies AEROlite® Flange Insulation Sets designed to limit galvanic corrosion in pipeline systems. Our kits remove electrical conductivity between dissimilar metal flanges and are essential for cathodically protected piping systems.
Kit Models & Technical Data
| Model Type | Flange Type | Primary Benefit |
|---|---|---|
| Type E (Full Face) | Flat/Raised Face | Minimises ingress of foreign matter and risk of bridging. |
| Type F (Ring Style) | Raised Face | Centrally locates within the bolts for reliable oil & gas service. |
| Type D (RTJ) | Ring Joint (RTJ) | Oval cross-section manufactured from reinforced phenolic resin. |
| AR-9902-HP | High Pressure | Suitable up to ANSI 2500#; features a 316SS metal core for high reliability. |
Material Performance
- • G10 / G11 GRE: High dielectric strength (24.1 kV/mm) and compressive strength (50,000 psi).
- • Temperature Range: G10 up to 150°C; G11 up to 200°C.
- • Sealing: High-performance kits feature spring-energized PTFE seals for critical service.

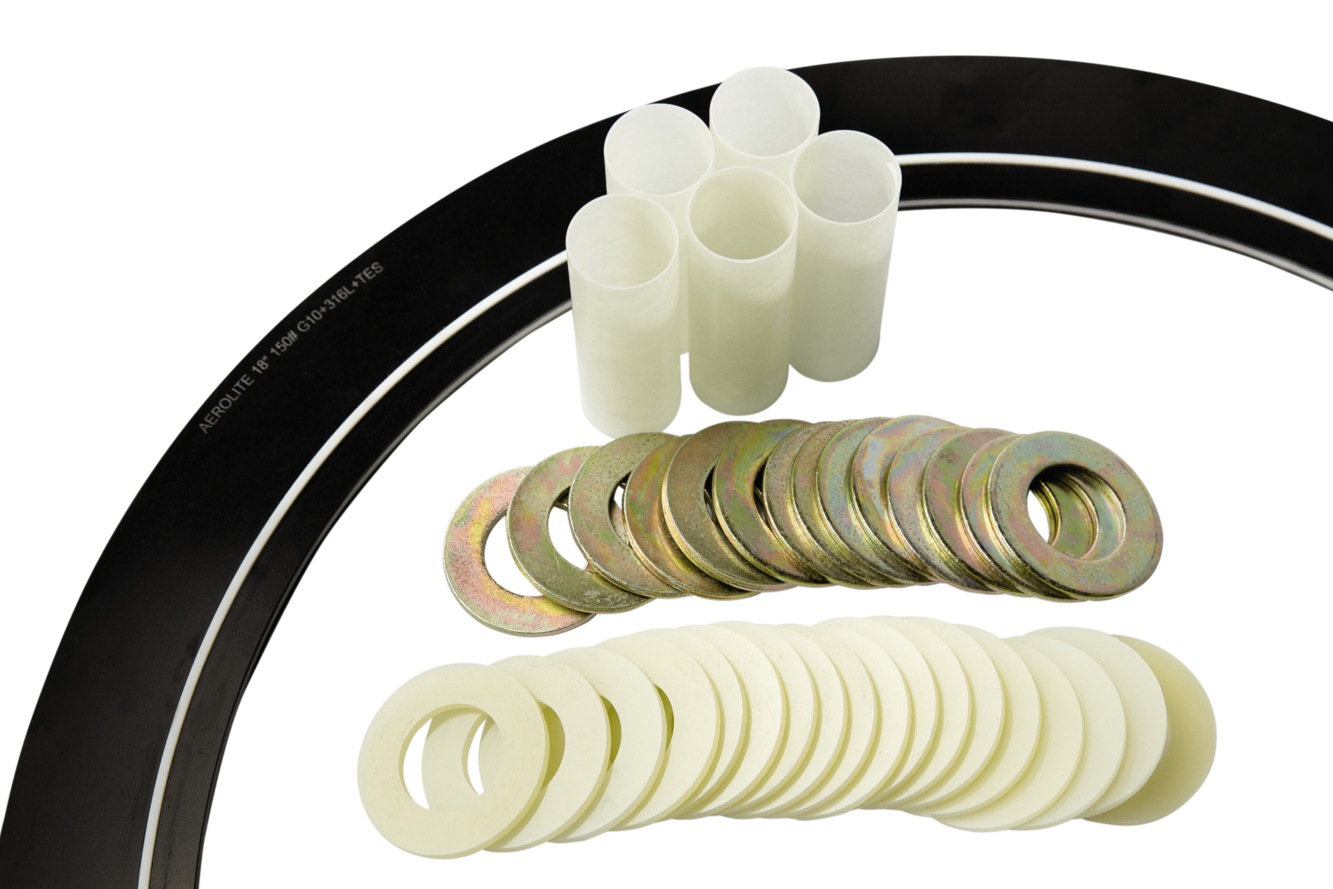

Complete Isolation Kit Contents
Each set is individually packed and labelled, comprising:
✔1 Central Gasket: Flat or oval section (Type E, F, or D).
✔Insulating Sleeves: 1 per bolt (G10 or Mylar standard).
✔Insulating Washers: 2 per bolt (G10 Glass Reinforced Epoxy).
✔Steel Washers: 2 per bolt (Zinc Plated Steel standard).
Supply Areas & Support
We support maintenance, shutdowns, and new projects with rapid delivery to Pasir Gudang, Pengerang, Masai, Johor Bahru, and Singapore.
Download AEROlite® Flange Insulation Set Technical Data Sheet (PDF)Technical Enquiries (Johor Bahru):
Phone: +607-3863 777
WhatsApp: +60 16-772 7166
Email: enquiry@tbj.com.my
